Rugged and adaptable vehicle-mount computers

Boost the work performance of your key employees, enabling them to reach higher levels, thanks to ultra-rugged vehicle mount terminals. Built to integrate with material handling equipment, they are specially designed to survive in challenging environments such as warehouses, refrigerated areas, distribution centers, impact, vibration and more.

Rugged, high performance Vehicle Mount Computers

High Robustness: Aluminum finish and anti-corrosive, its full IP65 protection makes it immune to all types of water splashes and dust. It is prepared for high vibration and shock environments, with its MIL-STD 810G military certification.

Maximum connectivity: it uses the full potential of Wifi, Bluetooth, LTE and GPS with its long-range external antennas.

Windows compatible: from Windows 7 to Windows 10 it takes full advantage of your business applications.

Intelligent power management: its integrated 8 to 36VDC input voltage and power control (ignition) eliminates maintenance costs and loss of productivity. It uses its internal battery to provide better service.

Differences with a rugged tablet

All ports are protected and are waterproof and dustproof. Using external antennas for Wifi and LTe provides long range and maximum reliability in the connections. Its power supply through a threaded connector guarantees the connection as well as its wide voltage range (8-36Vdc). It transforms the vehicle terminal into a tablet thanks to its internal battery that works as a UPS.

Reinforced design of the highest level

The trolley terminal is suitable for the harshest environments, with IP65 dust and water sealing, sealed connectors and extreme temperature, shock and vibration resistance testing. Its aluminum finish and fanless design make it ready for any warehouse environment.

Easy to see both indoors and outdoors

Its high-brightness display provides a bright screen for indoor or outdoor viewing. The vehicle terminal has multiple accessories for all types of vehicles.

8” Android Vehicle Terminal

Odeon A800

Android 12

4GB RAM - 64GB Flash
Water-Dust Resistant IP65 Total
M12 Stainless Steel Threaded Ports
USB, RJ45, RS-232 Ports
External Antennas Wifi, LTE, GPS

Learn More

10” Android Vehicle Terminal

Odeon A100

Android 12
4GB RAM - 64GB Flash
Water-Dust Resistant IP65 Total
M12 Stainless Steel Threaded Ports
USB, RJ45, RS-232 Ports
External Antennas Wifi, LTE, GPS

Learn More

Vehicle Terminal 8” Windows

Odeon W810

Windows 11
Celeron - 8GB RAM - 128GB SSD
Water-Dust Resistant IP65 Total
M12 Stainless Steel Threaded Ports
USB, RJ45, RS-232 Ports
External Antennas Wifi, LTE, GPS

Learn More

Vehicle Terminal 10” Windows

Odeon W110

Windows 11
Celeron - 8GB RAM - 128GB SSD
Water-Dust Resistant IP65 Total
M12 Stainless Steel Threaded Ports
USB, RJ45, RS-232 Ports
External Antennas Wifi, LTE, GPS

Learn More

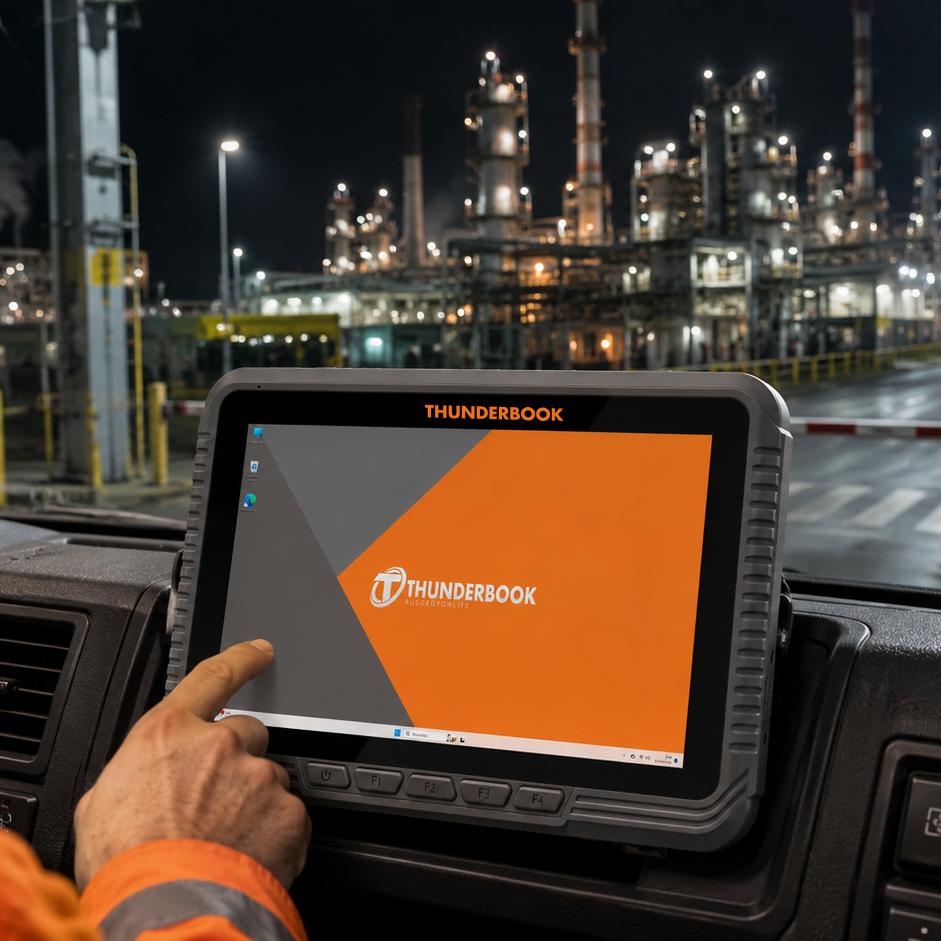

Why use a vehicle terminal?

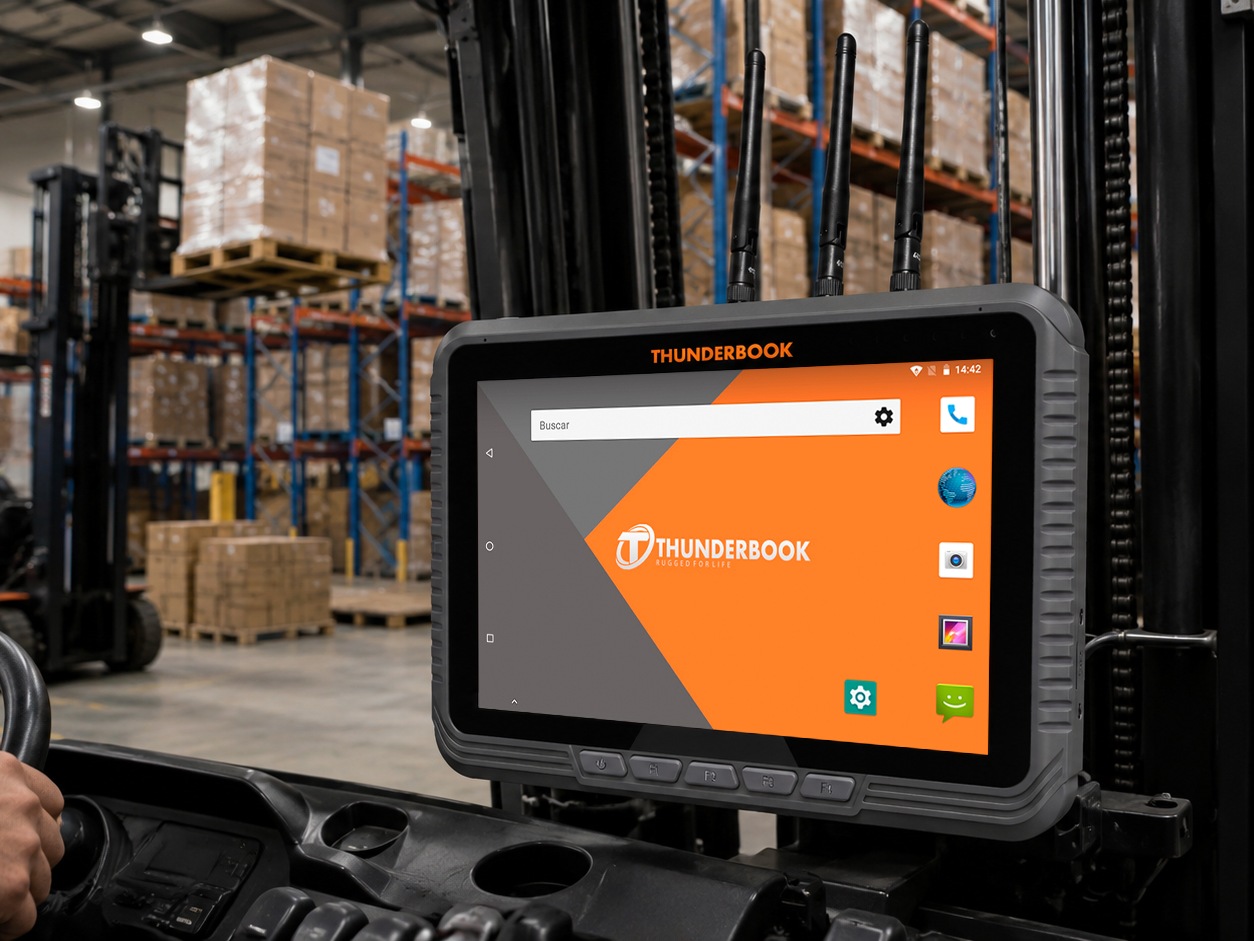

Ideal for all material handling vehicles

Ignition and wide voltage

Connect your vehicle terminal to the vehicle starter. Program a delay for both ignition on and off. Extended input voltage 9-36VDC.

Integrated UPS

Use its integrated 3350mAh battery to minimize unplanned shutdowns and decrease downtime. Its 1 hour autonomy gives enough time for any inconvenience that may occur.

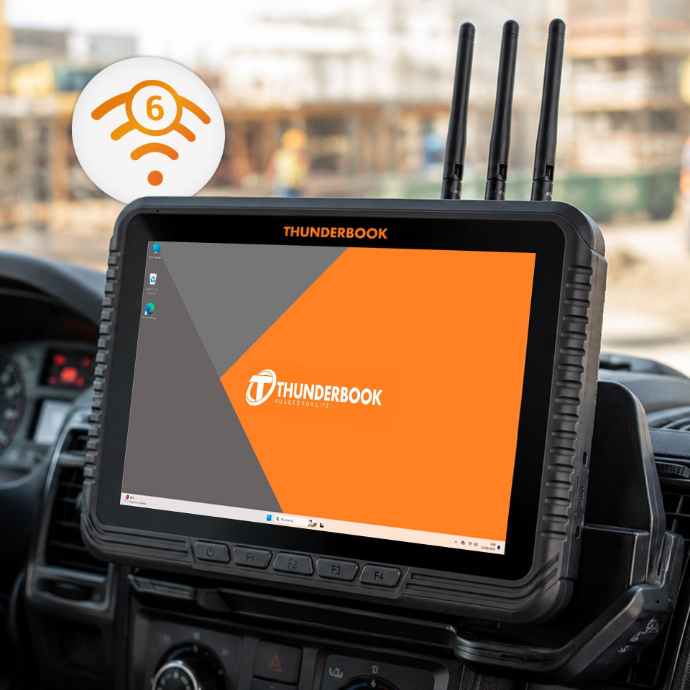

Wide coverage antennas

Improving Wifi, LTE, Bluetooth or GPS (dedicated) coverage can be critical for your daily work. You have the possibility to use external antennas to the device to get the best performance.

Main advantages

Maximum ruggedness and functionality

Aluminum finish

Special attention for salty outdoor environments with an anti-corrosion system

Military standard MIL-STD 810G

IP65 protection against dust and water, watertight connectors and the ability to operate in extreme conditions of temperature, shock and vibration.

Easy mounting and multiple IP65 ports

Compatible with VESA 75 and 100 you can use an infinite number of universal mounting systems. You can also purchase an anti-glare sunshield, among others.

Would you like to receive personalized information?

Ask for help

Terminal Vehículo 8,4"

Odeon W800

Resolución 800 x 600
Luminosidad 450 Nits
4GB RAM, 128GB SSD
Wifi AC + Bluetooth + LTE + GPS
Windows 7/10/Linux
RS232/422/485, USB, RJ45
IP65 Aluminio
Altavoz
Batería interna

Saber más

Terminal Vehículo 10,4"

Odeon W100

Resolución 1024 x 768
Luminosidad 600 Nits
4GB RAM, 128GB SSD
Wifi AC + Bluetooth + LTE + GPS
Windows 7/10/Linux
RS232/422/485, USB, RJ45
IP65 Aluminio
Altavoces
Batería interna

Saber más

Terminal Vehículo 12,1"

Odeon W120

Resolución 1024 x 768
Luminosidad 500 Nits
4GB RAM, 128GB SSD
Wifi AC + Bluetooth + LTE + GPS
Windows 7/10/Linux
RS232/422/485, USB, RJ45
IP65 Aluminio
Altavoces
Batería interna

Saber más

Key Features

An on-board terminal, also known as a Vehicle Mount Computer (VMC), is a device designed specifically for use in industrial vehicles, such as forklifts, lift trucks and warehouse trucks.

The vehicle-mounted terminal fuses the latest high-performance technology with a compact form factor that minimizes interference in the driver's field of vision. It displays crucial workflow information in a visually accessible, up-close and unobtrusive manner.

Optimized for in-vehicle installations, the truck terminal is equipped with an internal 30-minute UPS battery backup and a built-in DC converter, eliminating the need for costly external converters or load protection devices. The backup UPS eliminates the frustration of having to log in and reconnect after changing the vehicle battery, maintaining operator productivity. At the end of the shift, there is no more waiting with the engine idling and wasting fuel to log off and shut down the terminal; an ignition control cable automates the process with a simple turn of a key.

These devices offer several key advantages in logistics and warehouse environments:

Increased productivity: Vehicle terminals are designed to optimize operations in warehouses and logistics environments. They enable operators to quickly access critical information, scan bar codes and perform inventory and warehouse management tasks efficiently, increasing productivity.
Error reduction: They can be equipped with barcode and RFID readers connected via cable or Bluetooth, which helps reduce errors in data collection and tracking. This is crucial to ensure accuracy in inventory and shipment management.
Real-time connectivity: These devices are often connected to warehouse management systems (WMS) and other enterprise systems via wireless networks, allowing operators to access up-to-date information in real time. This improves decision-making and visibility into operations.
Durability: The vehicle-mounted terminals are designed to withstand harsh industrial environments. They are resistant to shock, vibration, dust and moisture, making them ideal for use in industrial vehicles operating in harsh environments.
Easy-to-read displays: These devices typically have high-brightness, easy-to-read displays, even in direct sunlight. This ensures that operators can see information clearly and accurately at any time.
User-friendly interface: The vehicle terminals have user interfaces designed to be intuitive and easy to use (Windows-based), which facilitates operator training and reduces data entry errors.
Security: The vehicle terminals include security features, such as screen locking and user authentication, to ensure that only authorized personnel can access critical information and functions.
Route optimization: They offer route optimization functionalities for commercial vehicle drivers, helping to reduce travel times and improve efficiency in product delivery.

In short, vehicle mount computers (VMCs) play a key role in improving efficiency, accuracy and security in logistics and warehouse operations by providing quick access to critical data and applications while on the move inside industrial vehicles.

Main technical specifications

-8.4" Display with Resistive Touchscreen.
-Intel Celeron J1900 Processor compatible with Windows 7.
-Full IP65 Protection and MIL-STD 810G certified against vibrations and shocks.
-External antennas for high coverage: Wi-Fi and Bluetooth (default) + 4G Modem and GPS (Optional).
-Wide input voltage range: 8-36VDC.
-Optional UPS-type internal battery.
-Multiple connectivity ports.

Standard configuration
PROCESSOR
Intel Celeron J1900 BayTrail Quad-Core 2GHz

MEMORY
4GB On-board RAM, 8GB RAM Optional

DISPLAY
8.4” XGA, 800 x 600, LED 450 NITS
Resistive touchscreen with glove support and brightness adjustment

STORAGE
SATA
-128GB (default).
-256GB (optional).
-512GB (optional).

Communications
WIRELESS
Dual-band WLAN 802.11a/b/g/n/ac and Bluetooth v4
4G Modem (Optional)
Dedicated Ublox 8 GPS (Optional)

ANTENNAS
2/3 TNC Connectors
Options:
2 x Wi-Fi Antennas
1 x Bluetooth Antenna
2 x 4G Modem Antennas
1 x GPS Antenna

Interfaces
PORTS
1x RS-232/422/485 (configurable to 5V or 12V)
1x RS-232
1x USB 2.0
1x USB 3.0
1x Ethernet 10/100/1000
1x Micro-SIM slot
1x Power input via threaded M12 connector
1x Battery switch
SPEAKER
1x 8Ω, 2W

BUTTONS
Power
Brightness Adjustment (+/-)

Power supply
INPUT
8-32 VDC

UPS
Optional internal battery for unexpected shutdowns, activated by switch
Lithium 3,350mAh 7.2V

Operating system
WINDOWS
Windows 10 IoT Enterprise LTSC

Windows 7 Profesional o Embedded Standard

Physical characteristics
DIMENSIONS
240mm x 190mm x 59mm

WEIGHT
1,8 kg

FINISH
Aluminum

MOUNTING TYPE
VESA 75/100

Enviromental specifications
OPERATING TEMPERATURE
-20°C a 60°C

HUMIDITY
10–95%

DUST AND WATER RESISTANCE
IP65

VIBRATION
Method 516.6 Procedure I

SHOCK
Method 516.6 Procedure I

MIL-STD (U.S. Military Standard)
810G

Main technical specifications

-10.4" Display with Capacitive Touchscreen (PCAP).
-Intel Celeron J1900 Processor compatible with Windows 7.
-Full IP65 Protection and MIL-STD 810G certified against vibrations and shocks.
-External antennas for high coverage: Wi-Fi and Bluetooth (default) + 4G Modem and GPS (Optional).
-Wide input voltage range: 8-36VDC.
-Optional UPS-type internal battery.
-Multiple connectivity ports.

Standard configuration
PROCESSOR
Intel Celeron J1900 BayTrail Quad Core 2Ghz

MEMORY
4GB RAM On-board, 8GB RAM Optional

DISPLAY
10,4” XGA, 1024 x 768, LED 600 NITS
Multi-touch capacitive touchscreen
Optional resistive touchscreen with glove support

STORAGE
SATA
-128GB (default).
-256GB (optional).
-512GB (optional).

Communications
RADIO
Dual-band WLAN 802.11a/b/g/n/ac and Bluetooth v4
4G Modem (Optional)
Dedicated Ublox 8 GPS (Optional)

ANTENNAS
2/3 TNC Connectors
Options:
1) 2 x Wi-Fi Antennas
2) 1 x Bluetooth Antenna
3) 2 x 4G Modem Antennas
4) 1 x GPS Antenna

Interfaces
PORTS
1x RS-232/422/485 (configurable 5V or 12V)
1x RS-232
1x USB 2.0
1x USB 3.0
1x Ethernet 10/100/1000
1x Micro-SIM slot
1x Power input via threaded M12 connector
1x Battery switch

SPEAKER
2x 8Ω, 2W

BUTTONS
Power
Brightness Adjustment (+/-)
Power Indicator LED

POWER SUPPLY
INPUT
8-32 VDC

UPS
Optional internal battery for unexpected shutdowns, activated by switch
Lithium 3,350mAh 7.2V

Operating system
WINDOWS
Windows 10 IoT Enterprise LTSC
Windows 10 Professional
Windows 7 Professional o Embedded Standard

Physical characteristics
DIMENSIONS
280mm x 230mm x 66mm

WEIGHT
2,8 kg

FINISH
Aluminum

MOUNTING TYPE
VESA 75/100

Environmental specifications
OPERATING TEMPERATURE
-20°C a 60°C

HUMIDITY
10–95%

DUST AND WATER RESISTANCE
IP65

VIBRATION
Method 516.6 Procedure I

SHOCK
Method 516.6 Procedure I

MIL-STD (U.S. Military Standard)
810G

CE

Main technical specifications

-12.1" Display with Resistive Touchscreen.
-Intel Celeron J1900 Processor compatible with Windows 7.
-Full IP65 Protection and MIL-STD 810G certified against vibrations and shocks.
-External antennas for high coverage: Wi-Fi and Bluetooth (default) + 4G Modem and GPS (Optional).
-Wide input voltage range: 8-36VDC.
-Optional UPS-type internal battery.
-Multiple connectivity ports.

Standard configuration
PROCESSOR
Intel Celeron J1900 BayTrail Quad Core 2Ghz

MEMORY
4GB RAM On-board, 8GB RAM Optional

DISPLAY
12,1” XGA, 1024 x 768, LED 500 NITS
Resistive touchscreen with glove support

Storage
SATA
-128GB (default).
-256GB (optional).
-512GB (optional).

Comunications
RADIO
Dual-band WLAN 802.11a/b/g/n/ac and Bluetooth v4
4G Modem (Optional)
Dedicated Ublox 8 GPS (Optional)

ANTENNAS
2/3 TNC Connectors
Options:
1) 2 x Wi-Fi Antennas
2) 1 x Bluetooth Antenna
3) 2 x 4G Modem Antennas
4) 1 x GPS Antenna

Interfaces
PORTS
1x RS-232/422/485 (configurable 5V or 12V)
1x RS-232
1x USB 2.0
1x USB 3.0
1x Ethernet 10/100/1000
1x Micro-SIM slot
1x Power input via threaded M12 connector
1x Battery switch

SPEAKER
2x 8Ω, 2W

BUTTONS
Power
Brightness Adjustment (+/-)

Power supply
INPUT
8-32 VDC

UPS
Optional internal battery for unexpected shutdowns, activated by switch
Lithium 3,350mAh 7.2V

Operating System
WINDOWS
Windows 10 IoT Enterprise LTSC
Windows 10 Professional
Windows 7 Professional o Embedded Standard

Physical characteristics
DIMENSIONS
320mm x 260mm x 66mm

WEIGHT
3,6 kg

FINISH
Aluminum

CE

Principales especificaciones Técnicas

- Pantalla 8" con Táctil Capacitivo Proyectado
- Legible bajo luz solar (700 nits)
- Procesador MediaTek Helio G99 con Android 12
- Protección IP65 Total
- Antenas externas para alta cobertura de: Wifi y GPS (por defecto) + Modem 4G (Opcional)
- Conectores roscados M12 anti-agua IP65 para los puertos
- Opción de batería interna tipo SAI
- Múltiples puertos de conectividad

Configuración estándar
PROCESADOR
MediaTek Helio G99

MEMORIA
4GB RAM On-board

DISPLAY
8” 1280 x 800, LED 700 NITS
Táctil capacitivo proyectado PCAP

Almacenamiento
eMMC
64GB

Comunicaciones
RADIO
Dualband WLAN 802.11a/b/g/n/ac y Bluetooth
Modem 4G (Opcional)
GPS

ANTENAS
2 Conectores SMA
1 x Antena GPS y 1 x Antena Wifi Dual SMA incluidas

Interfaces
PUERTOS

2 x RS-232

1 x USB-A 2.0

3 x USB 2.0

1 x RJ45 (100M)

1 x Slot Micro-Sim

1 x Conector corriente M12

2 x Conectores antenas externas SMA

ALTAVOZ
1x 8Ω, 1,5W

BOTONES
Encendido
Ajuste Volumen +/-

Alimentación
ENTRADA
19VDC

SAI
Batería interna para apagados inesperados
Litio 2.000mAh 3,7V (Opcional)

Sistema Operativo
Android 12

Características Físicas
DIMENSIONES
281mm x 545mm x 23mm

PESO
620g

ACABADO
Plástico

TIPO MONTAJE
VESA 75 / RAM

Medio Ambiente
TEMPERATURA OPERACIÓN
-20°C a 60°C

HUMEDAD
10–95%

POLVO Y AGUA
IP65

Principales especificaciones Técnicas

- Pantalla 10" con Táctil Capacitivo Proyectado
- Legible bajo luz solar (700 nits)
- Procesador MediaTek Helio G99 con Android 12
- Protección IP65 Total
- Antenas externas para alta cobertura de: Wifi y GPS (por defecto) + Modem 4G (Opcional)
- Conectores roscados M12 anti-agua IP65 para los puertos
- Opción de batería interna tipo SAI
- Múltiples puertos de conectividad

Configuración estándar
PROCESADOR
MediaTek Helio G99

MEMORIA
4GB RAM On-board

DISPLAY
10” 1280 x 800, LED 700 NITS
Táctil capacitivo proyectado PCAP

Almacenamiento
eMMC
64GB

Comunicaciones
RADIO
Dualband WLAN 802.11a/b/g/n/ac y Bluetooth
Modem 4G (Opcional)
GPS

ANTENAS
2 Conectores SMA
1 x Antena GPS y 1 x Antena Wifi Dual SMA incluidas

Interfaces
PUERTOS

2 x RS-232

1 x USB-A 2.0

3 x USB 2.0

1 x RJ45 (100M)

1 x Slot Micro-Sim

1 x Conector corriente M12

2 x Conectores antenas externas SMA

ALTAVOZ
1x 8Ω, 1,5W

BOTONES
Encendido
Ajuste Volumen +/-

Alimentación
ENTRADA
19VDC

SAI
Batería interna para apagados inesperados
Litio 2.000mAh 3,7V (Opcional)

Sistema Operativo
Android 12
