Edge Computer

Thunderbook industrial PCs are specially designed for edge computing. These are specialized PCs with GPU and VPU for computer vision environments, configurable and expandable.

Industrial PCs - ECCO Series

The new Thunderbook ECCO Series industrial PCs are ready to be used in the most demanding work environments, compatible with dedicated cards for optimizing real-time image analysis thanks to their GPU and VPU.

They are highly configurable and scalable devices, as well as modular to grow over time. Their different product ranges are designed to provide various levels of solutions across different industrial sectors.

Artificial vision systems will find the best ally for their projects in Thunderbook industrial computers (edge computers). Their high performance and features will meet most of your expectations for the successful development of your projects.

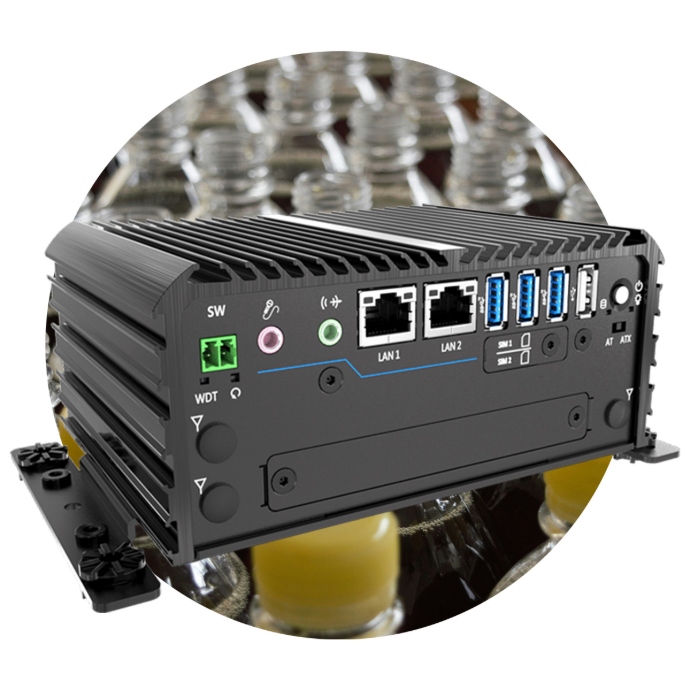

Edge Computers ECCO

The Industrial PC Ready for Edge Computing

Dedicated Graphics Card (GPU)

They support multiple GPU cards both in the PC and in its nodes.

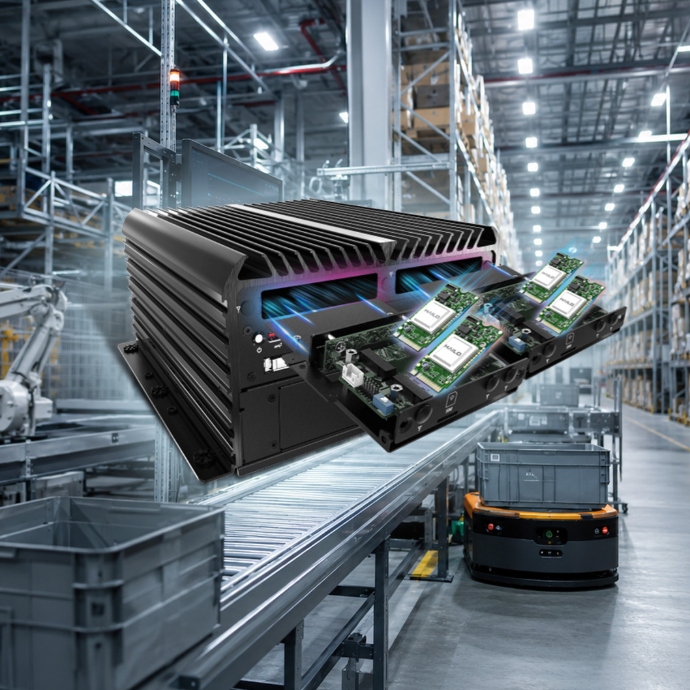

Vision Processing Unit (VPU) Graphics Card

A dedicated artificial vision accelerator, taking up less space than a GPU and specifically designed for managing computer vision data. It is integrated directly into the industrial PC, offering low power consumption and high performance.

Universal Expansion

Edge computers come with modular expansion slots, such as: 8 x RJ45 / POE, 4 x RJ45 / POE 10Gb, 8 x USB 3.2, threaded connectors, SSD NVMe, HDD, RAID, 5G Modem.

Multiple Features

Its different models are tailored to meet each need.

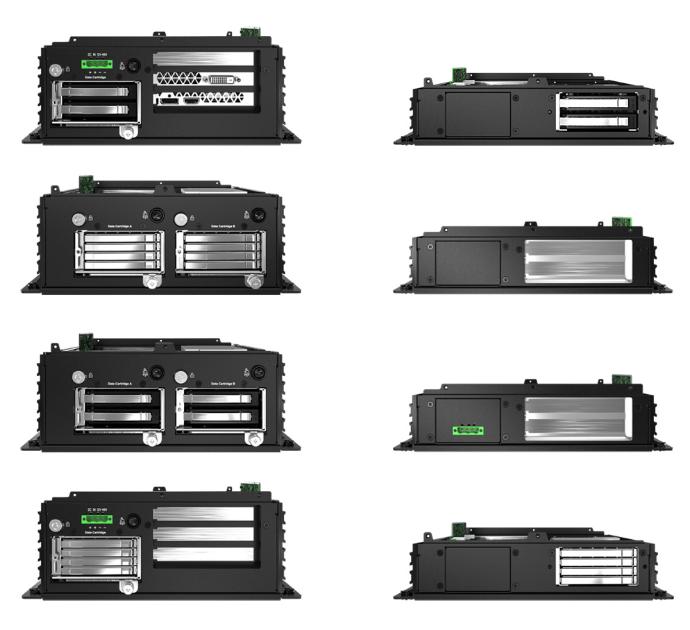

Expansion Nodes

An industrial PC has limited expansion space. Use additional nodes to maximize its expansion, adding more GPUs, multiple SSD/HDD hard drives, extra ports, and more.

High-Performance Processors

Intel Comet Lake Latest Generation CPUs:
Core i3-10100, i5-10500, i7-10900, and Xeon-1250, 1270, 1290.
From 4 Cores with i3 to 10 Cores with Xeon. Compatible with Windows and Linux.

Specific Models for Vehicles

Industrial PCs with e-Mark certification and ready for EN-50155, featuring threaded connectors, multiple Ethernet ports, RS-232, USB 3.2, and more.

Consult with our experts to find the best Edge Computer for your project.

There are as many configurations available as your project requires.

Contact

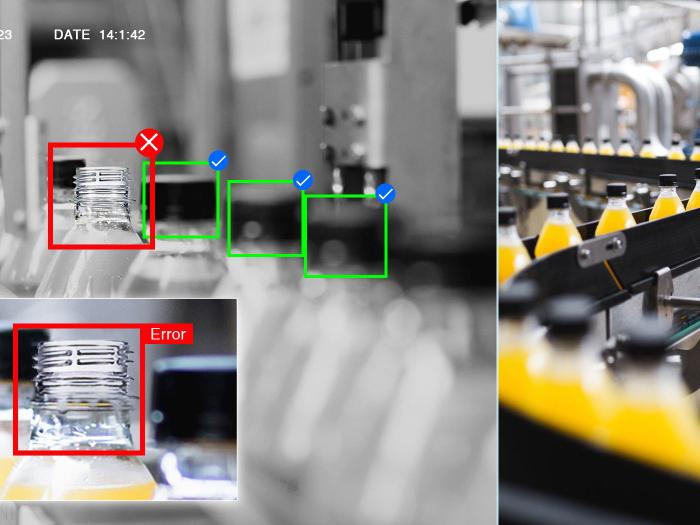

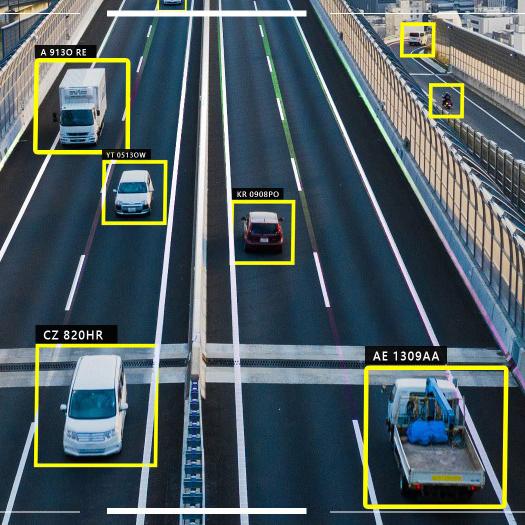

Computer Vision Systems: The Ideal Edge Computer

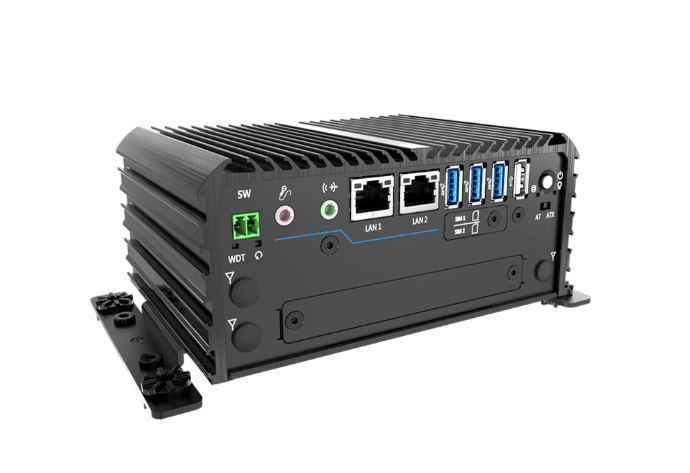

ECCO 1000 - Edge Computer

Specialized for Edge AI Vision
Vision Processing Unit (VPU) - Hailo 8
Intel Atom x6425E Quad-Core CPU or Intel Celeron J6413
1x 260-pin DDR4 SODIMM. Up to 32GB
2x Display Port
1x 2.5GbE, 1x GbE (Wake-on-LAN y PXE)
1x 2.5” SATA HDD, 1x mSATA,
1x M.2 (B Key, 2242/3042/3052, 4G/5G)
1x Full-size mini PCIe
2x RS-232/422/485, 3x USB 3.2 Gen2, 1x USB 2.0
9 to 36VDC Input Voltage
Temperature: -40°C to 70°C
TPM 2.0 Supported
Up to 5x Universal Expansion Slots

Learn more

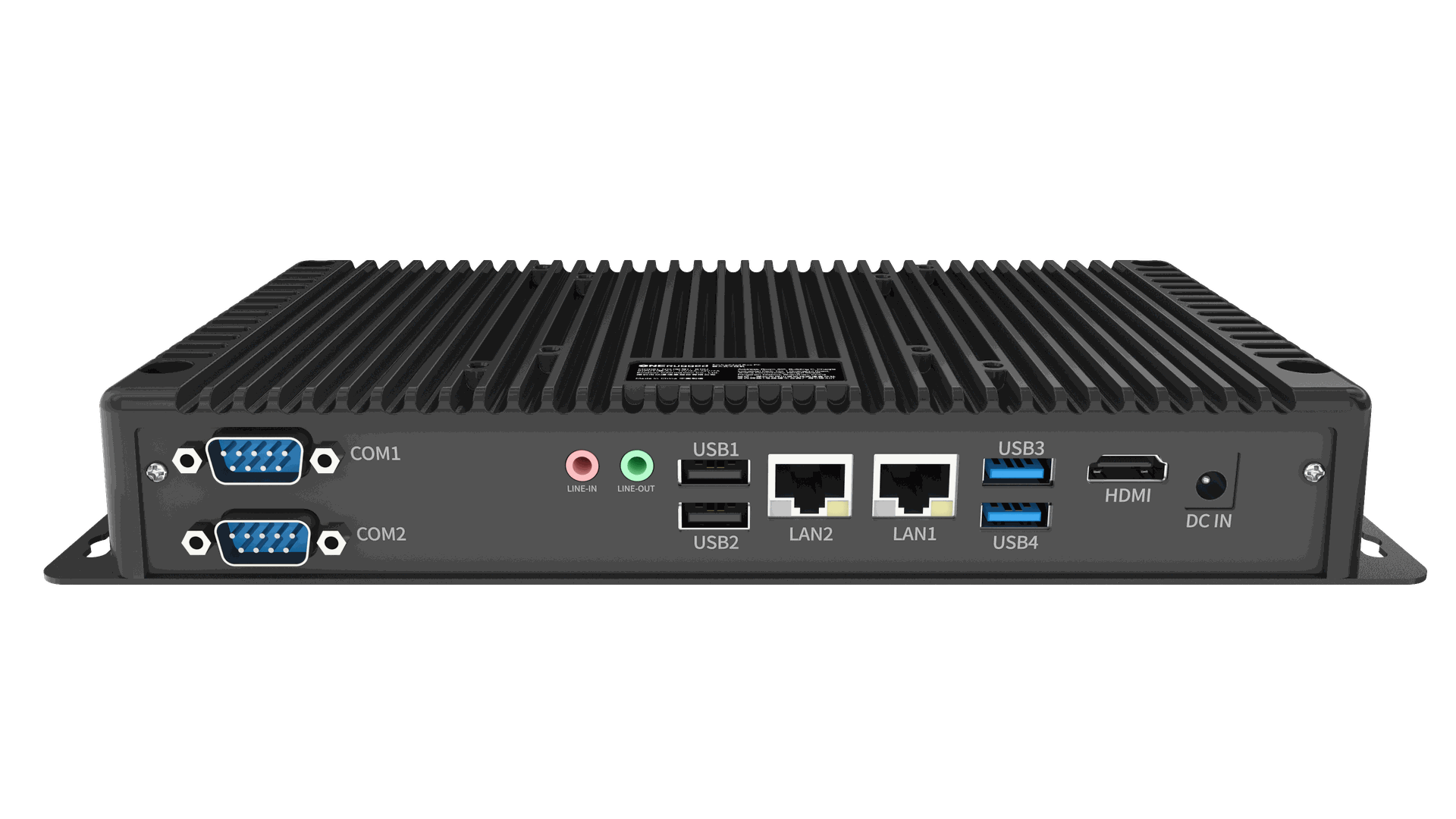

ECCO 2500 - SLIM INDUSTRIAL PC

Intel Celeron Jasper Lake N5100 Quad-Core CPU or Intel Core i5 Alder Lake 12th Generation
8GB RAM, 128GB SSD (Expandable)
Wi-Fi and Bluetooth by default
Ports: 4 x USB, 2 x RJ45, 2 x COM, 1 x HDMI
External Antennas
12 to 24VDC Input Voltage
Temperature: -20°C to 60°C
VESA 75/100 Mounting and Wall Mount

Learn more

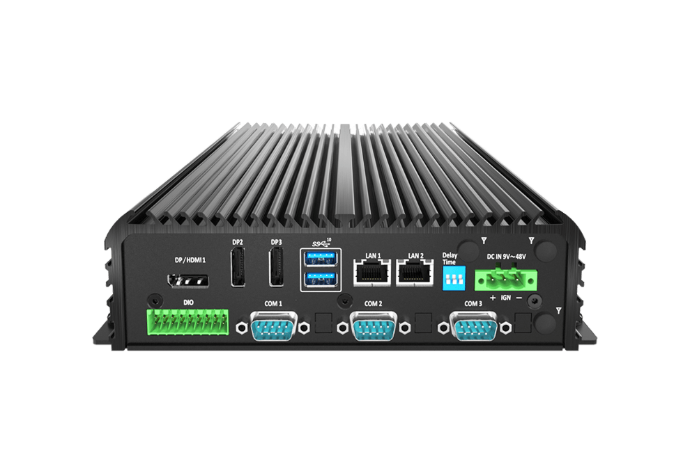

ECCO 3000 - Edge Computer

Intel Celeron G5900TE, Pentium G6400TE, i3-10100TE, i5-10500TE, i7-10700TE, i9-10900TE CPUs
3 x Vision Processing Units (VPU) - Hailo 8
3x Display Port 4k
2x 260-pin DDR4 SODIMM. Up to 64GB
2x Intel GbE Wake-on-LAN and PXE
1x Full-size Mini PCIe y 2x SIM slots
2x 2.5” SATA HDD Bay (1x Internal) with RAID 0, 1, 5, 1x mSATA
1x M.2 (E Key, PCIe x1, USB 2.0, 2230, Support CNVi)
5x RS-232/422/485 (2x internal)
6x USB 3.2 Gen 2 (10 Gbps), 2x USB 3.2 Gen 1 (internal)
8x Isolated DI + 8x Isolated DO
9 to 36VDC Input Voltage
Temperature: -25°C to 70°C
TPM 2.0 Supported
1x Universal Expansion Slot

Learn more

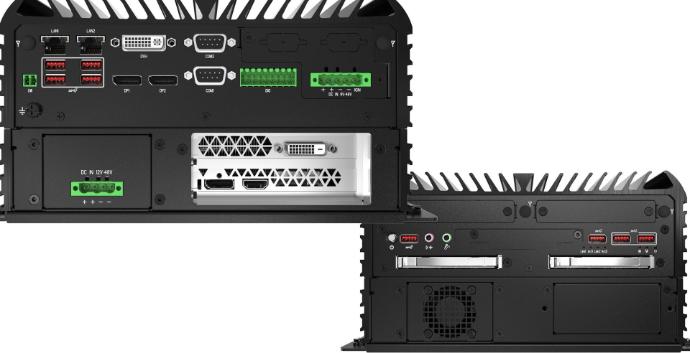

ECCO 6000 - Edge Computer

CPU Intel i3-10100TE, i5-10500TE, i7-10700TE, i9-10900TE, Xeon W-1250TE
GPU NVIDIA GeForce RTX 2060 or 4 x Vision Processing Unit VPU (Hailo 8)
2x 260-pin DDR4 SODIMM. Up to 64GB
2x Intel GbE Wake-on-LAN and PXE
3x 2.5” SATA HDD Bay (1x internal) with RAID 0, 1, 5
1x M.2 (E Key, PCIe x1, USB 2.0, 2230, CNVi support), 2x SIM slots
9 to 36VDC Input Voltage
Temperature -25°C to 60°C
TPM 2.0 Supported
2x Universal Expansion Slots

Learn more

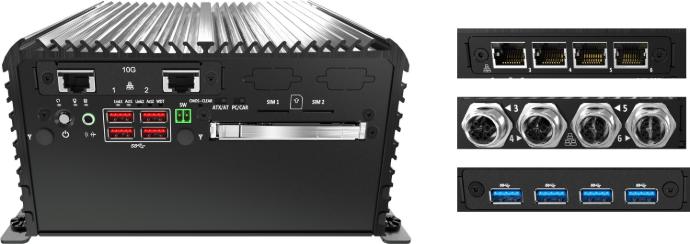

ECCO BOOST - Connectivity Expansion

The Ecco Boost expansion system allows you to expand most industrial PCs with multiple ports and connectivity options.

Depending on the ECCO series, the industrial PC can be expanded with 4 or 8 slots. For example: 4 Ethernet ports or 8 POE ports, 4 USB 3.2 ports or 8 ports, M.2 expansion for 4/5G Modem or VPU (Hailo 8, graphics accelerator), HDMI, and RS-232. Different combinations allow you to reach the necessary configuration for each project without additional investment.

Learn more
